4x4 Car with 3 Button Remote

Building:
Program:

1-9

Start by building the 4x4 Chassis. Click the picture for building instructions.

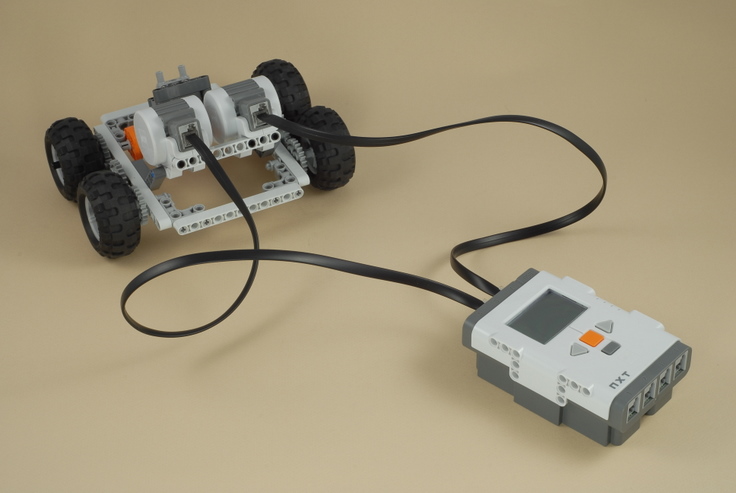

Use the two longest wires to attach the left side motor to port B on the NXT and right side motor to port C on the NXT.

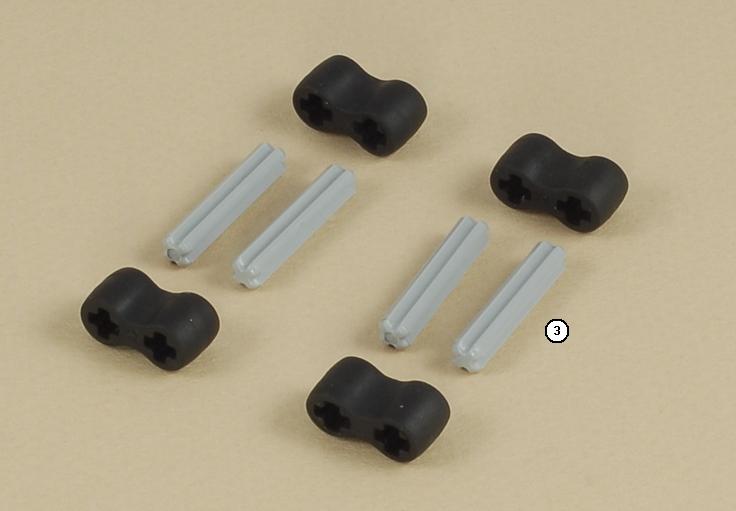

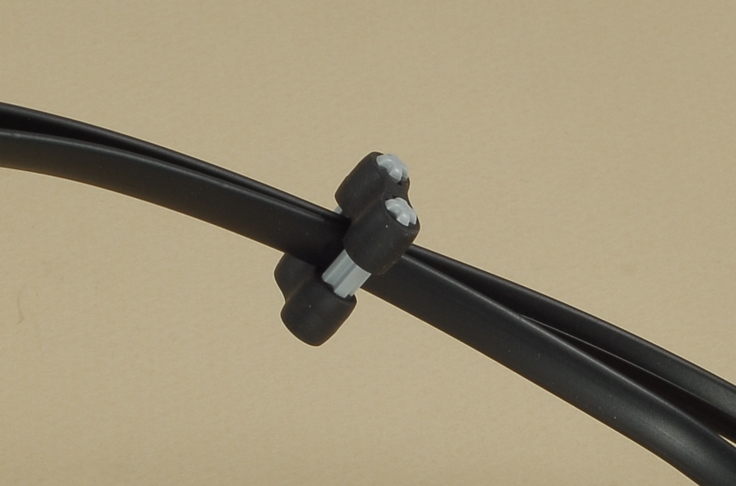

Build two wire clips and use them to bundle the two remote control wires into a single cable.

4x4 Car with 3 Button Remote Programming

Use the program 3-Button Remote for the 4x4 Car with 3 Button Remote.

How to Drive Using the 3 Button Remote Control

Press and hold the Orange button on the NXT to go straight forward.
Press and hold the gray left arrow button on the NXT to do a pivot turn to the left.
Press and hold the gray right arrow button on the NXT to do a pivot turn to the right.

Challenges

This 4x4 car looks sort of like a moon buggy. Can you redesign it or add things to it to make it look more like a monster truck?
The 3-button remote control does not have a way to go straight backwards in reverse. Note that you cannot use the dark gray button on the NXT brick because this button always stops the program. However, by attaching a touch sensor to the NXT brick with a short wire and modifying the program, you could add a 4th button that will do whatever you want (go in reverse, honk the horn, or whatever). Can you figure out how to extend the 3-Button Remote program to add support for the touch sensor acting as a 4th button?
